Application

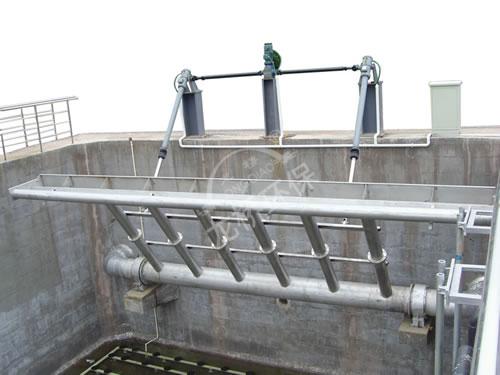

It is the key mechanical equipment in SBR process of sewage treatment to discharge supernatant. It is applicable for treatment of city sewage and industrial sewage from papermaking industry, beer industry, tannery industry, pharmacy industry.
Characteristic of structure
1. The material of carrier pipe is anti-corrosive; excellent corrosion resistance.
2. Efficient low resistance seal, sealed and reliable, flexible rotation, low energy consumption.
3. Scum board and buoy are set at the decanting weir the plate depth is adjustable.
4. Convenient installation of whole structure, simple operation and management, low operating cost, safe and reliable work.
Frequency control and PLC programmable automatic control or remote control of central control room are applied.
| Type | Width of weir（m） | Maximum decanting depth（m） | Decanting volume（m3/h） |
| XBS-50 | 0.5 | 1.4-3.0 | 50-70 |
| XBS-100 | 1.0 | 100-140 |
| XBS-200 | 2.0 | 200-280 |
| XBS-300 | 3.0 | 300-420 |
| XBS-400 | 4.0 | 400-560 |
| XBS-500 | 5.0 | 500-700 |
| XBS-600 | 6.0 | 600-840 |
| XBS-700 | 7.0 | 700-980 |
| XBS-750 | 7.5 | 750-1050 |
| XBS-800 | 8.0 | 800-1120 |
| XBS-900 | 9.0 | 900-1260 |
Note: the special specification can be designed and manufactured according to requirements of users.
